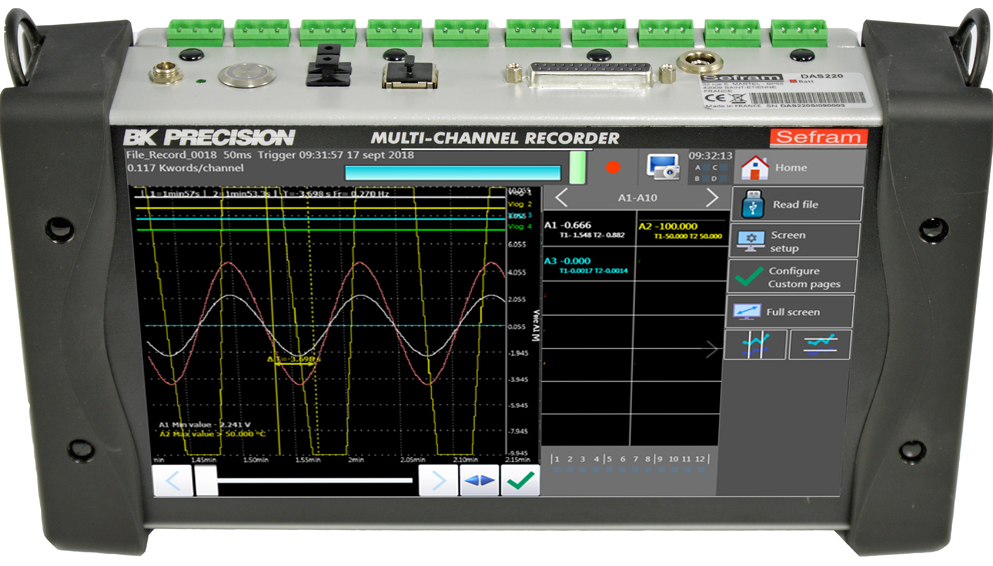

10 Channel Handheld Universal Datalogger. Battery model
- 10 analogue channels
- Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
- Voltage: from 1mV to 200V (±100V)
- Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
- 16 Bit vertical resolution
- Max sampling rate: 1ms (1kHz)
- 12 logical channels
- 4 alarms (output)
- 4 logical function input with counter & frequencymeter capability
- 10" TFT panoramic touch screen
- Internal hard drive : 32 GB
- Lithium-ion battery (DAS220BAT model) : 15h autonomy
- Labview driver available
- MODBUS TCP (slave)
- Safety: IEC61010 CAT I 100V Detaillierte Informationen
| (exkl. MwSt.) | € 2 032,15 |
| Preis inkl. MwSt. | € 2 438,58 |
| Verfügbarkeit des Produkts | Auf Anfrage |
| Produktnummer | BK_DAS220BAT |
Garantie 12 Monate
Detailbeschreibung 10 Channel Handheld Universal Datalogger. Battery model
The Data Acquisition Solution DAS220 is the right answer for your recording needs. With 10 channels and 12 logical inputs the DAS220 has been designed to measure all parameters you can find in a industrial process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. Measurement results can be viewed graphically and numerically on a 10-inch color touch screen and saved to internal solid-state memory or transferred to an external USB memory stick.
Videos und Dateien zum Herunterladen 10 Channel Handheld Universal Datalogger. Battery model
Typ: pdfDas Produkt ist in den folgenden Kategorien eingestuft
