4 Channel Handheld Data Acquisition Solution. Carrying case included
- 4 analogue channels
- Universal input (1mV to 425V RMS)
- DC, AC+DC RMS voltage measurement
- Frequency, Thermocouple
- Power analysis function
- 16 logical channels
- 14-bit resolution
- 10" TFT LCD screen
- 1 Mega sample/s sampling rate
- 100 kHz bandwidth
- 32 GB internal hard disk
- 32 Mword memory
- Interface : USB and Ethernet
- Lithium-ion battery: 10h continuous operation
- High safety level for industrial application: CEI 1010 CAT III 600V
- Optional Printer : 110 mm paper width (factory option) Detaillierte Informationen
| (exkl. MwSt.) | € 4 069,15 |
| Preis inkl. MwSt. | € 4 882,98 |
| Verfügbarkeit des Produkts | Auf Anfrage |
| Produktnummer | BK_DAS50 |
Garantie 12 Monate
Detailbeschreibung 4 Channel Handheld Data Acquisition Solution. Carrying case included

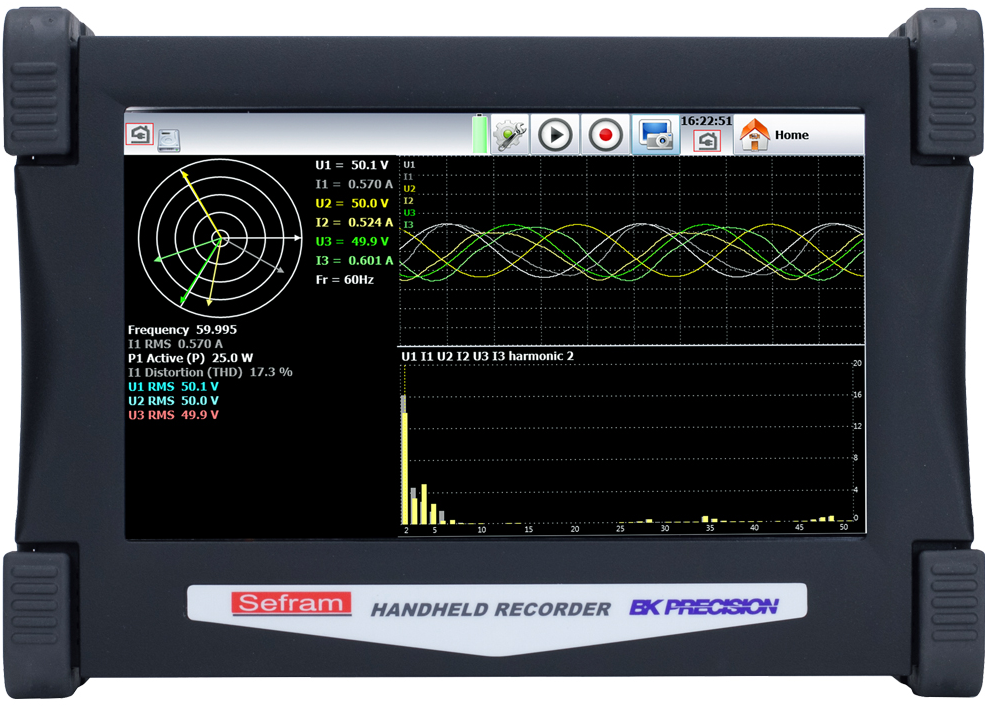

The Data Acquisition Solution DAS50 is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 4 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs (in option), more than 9 hours autonomy, a 32GB memory, the DAS50 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network. The remote control and the download of memorized data is very convenient using one of the interfaces provided: Ethernet, USB, WiFi (option). To view and manage your data, we propose several license-free software that can be downloaded from our website and that will match your needs. Available with printer option.
Videos und Dateien zum Herunterladen 4 Channel Handheld Data Acquisition Solution. Carrying case included
Typ: pdfDas Produkt ist in den folgenden Kategorien eingestuft
