10 Channel Handheld Universal Datalogger

Kostenlose Lieferung

10 analogue channels
Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
Voltage: from 1mV to 200V (±100V)
Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
16 Bit vertical resolution
Max sampling rate: 1ms (1kHz)
12 logical channels
4 alarms (output)
4 logical function input with counter & frequencymeter capability
10" TFT panoramic touch screen
Internal hard drive : 32 GB
Lithium-ion battery (DAS220BAT model) : 15h autonomy
Labview driver available
MODBUS TCP (slave)
Safety: IEC61010 CAT I 100V

(exkl. MwSt.)	€ 1 838,15
Preis inkl. MwSt.	€ 2 205,78
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_DAS220

Zusammenhängende Produkte

Garantie 12 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 10 Channel Handheld Universal Datalogger

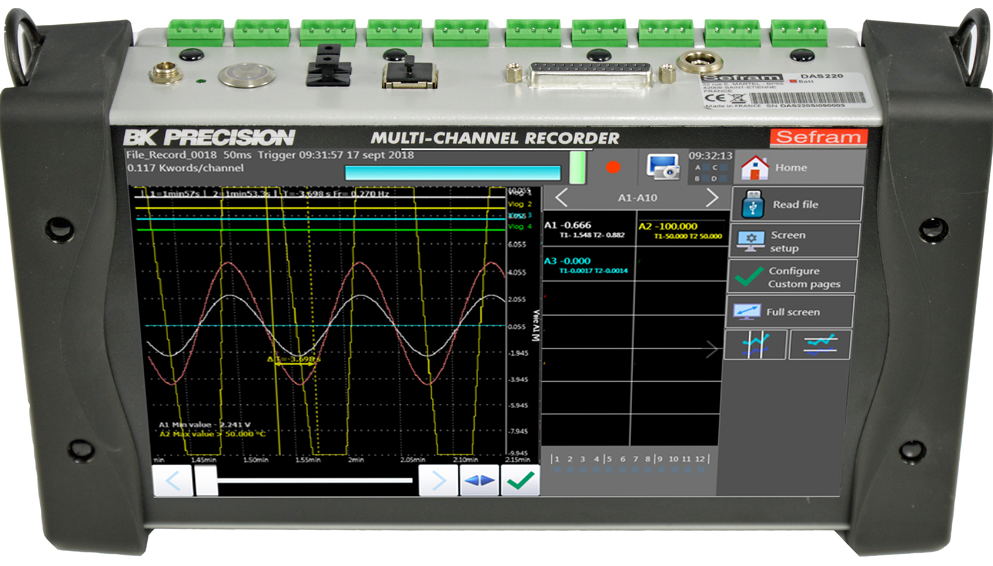

The Data Acquisition Solution DAS220 is the right answer for your recording needs. With 10 channels and 12 logical inputs the DAS220 has been designed to measure all parameters you can find in a industrial process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. Measurement results can be viewed graphically and numerically on a 10-inch color touch screen and saved to internal solid-state memory or transferred to an external USB memory stick.
