Einführung DC Netzteile Keysight DC Netzteile Keysight E36441A DC power supply, 4-output, auto-range: 4 x 32V, 10A, 400W: LAN, USB

Keysight E36441A DC power supply, 4-output, auto-range: 4 x 32V, 10A, 400W: LAN, USB

Kostenlose Lieferung

Keysight E36441A DC power supply, 4-output, auto-range: 4 x 32V, 10A, 400W: LAN, USB


  • Power output 400 W
  • DC output ratings: 160 W / 0 to 32 V / 0 to 10 A on each channel
    •
  • Programming resolution 1 mV / 1 mA
    •
  • Readback resolution 0,5 mV / 1 mA
    •
  • Output ripple and noise (20 Hz to 10 MHz) < 4 mArms
    •
  • Connectivity USB and LAN
    •

More detailed specifications and dimensions of available models are specified in data sheet. Detaillierte Informationen

Weitere Produkte in der Kategorie
(exkl. MwSt.) € 2 877,02
Preis inkl. MwSt. € 3 452,42
 Stk.
Verfügbarkeit des Produkts Auf Lager
Produktnummer E36441A

Garantie 36 Monate

Produktseite des Hersteller

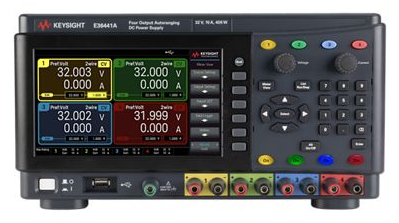

Detailbeschreibung Keysight E36441A DC power supply, 4-output, auto-range: 4 x 32V, 10A, 400W: LAN, USB

The Keysight Smart Bench Essentials Plus E36441A autoranging DC bench power supply delivers 400 W of reliable and responsive power across four outputs (160 W / 32 V / 10 A each) for hardware design validation and debugging productively. It offers capabilities such as output sequencing and adjustable slew rates for application-specific tasks. Its four channels are flexible in configuration and expandable to 128 V in series or 40 A in parallel. Experience a reliable source of power with low output noise and ripples, along with a fast load transient response. The E36441A enables you to do the following:

  • Set parameters easily using the 7-inch color display.
  • Deliver 400 W of power across four channels with low ripple and noise.
  • Respond quickly to dynamic load changes with fast transient performance.
  • Expand output up to 128 V in series or 40 A in parallel with the four-channel configuration.
  • Achieve precise voltage and current control with accurate programming and readback.
  • Adjust voltage and current easily using color-coded channels and individual knobs.
  • Ensure accurate voltage regulation with support for two-wire and four-wire remote sensing.
  • Record data conveniently with the built-in datalogger.

  • Nach oben

    Zeigen videos und dateien zum herunterladen  »

    Videos und Dateien zum Herunterladen Keysight E36441A DC power supply, 4-output, auto-range: 4 x 32V, 10A, 400W: LAN, USB

    Keysight E36441A Datasheet
