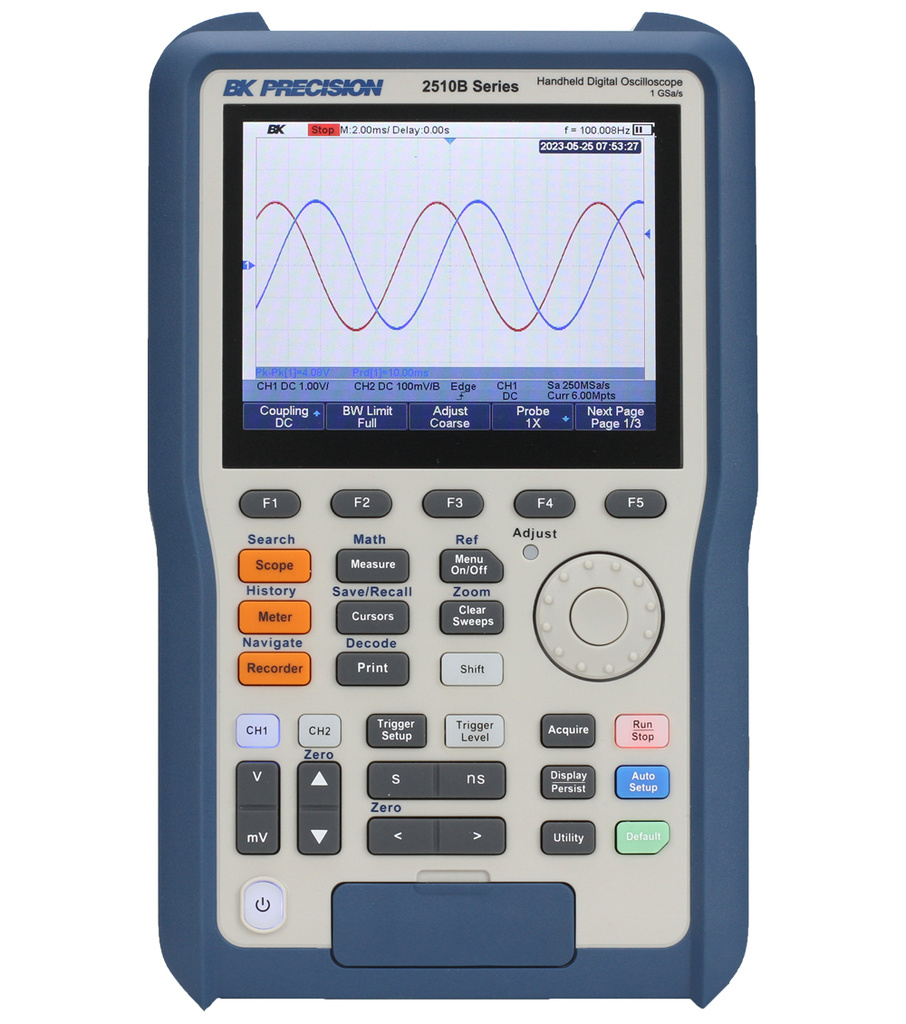

200 MHz Isolated Handheld Digital Oscilloscope

Kostenlose Lieferung

200 MHz bandwidth, 1 GSa/s sample rate
Fully isolated 1000 V CAT II and 600 V CAT III input rating (models 2515B / 2516B)
Non-isolated 300 V CAT II input rating (models 2511B / 2512B)
12 Mpts memory depth
Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
FFT plus 7 additional math functions
Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
Recorder and trend plot functions to log data
USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
Standard micro-USB device port for remote PC control

(exkl. MwSt.)	€ 3 443,50
Preis inkl. MwSt.	€ 4 132,20
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK2516B

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 200 MHz Isolated Handheld Digital Oscilloscope

The 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.
