100 MHz, 1 GSa/s, 4 Channel DSO

Kostenlose Lieferung

100 MHz bandwidth, 4 analog channels
Maximum sample rate of 1 GSa/s, Maximum memory depth of 14 Mpts
Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
7” TFT-LCD with 800 x 480 resolution
Versatile triggering capabilities including pulse width, line-selectable video and serial
Segmented acquisition stores up to 80,000 frames
Serial decoding for I2C, SPI, UART, CAN, and LIN protocols
FFT feature and 7 additional math operations, Masking tool with adjustable limits for pass/fail testing
LAN and USBTMC compliant device ports for PC connectivity
USB host port for saving and recalling waveform setups, data, and screenshots

(exkl. MwSt.)	€ 654,75
Preis inkl. MwSt.	€ 785,70
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK2194

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 100 MHz, 1 GSa/s, 4 Channel DSO

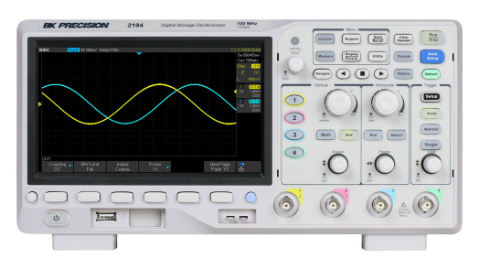

The 2194 combines performance and value all in one portable solution. This oscilloscope provides 100 MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1 GSa/s and a maximum memory depth of 14 Mpts. The 2194 comes equipped with a 7" widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.

Nach oben

Zeigen videos und dateien zum herunterladen »
