Wideband Amplifier 220 AC input
- 30 Vpp output from 50 Ω
- DC to 1 MHz bandwidth
- 50 Ω and 600 Ω outputs
- -20 dB attenuation
- LED notification for clipped signals
- Fully protected output with high current drive Detaillierte Informationen
| (exkl. MwSt.) | € 320,10 |
| Preis inkl. MwSt. | € 384,12 |
| Verfügbarkeit des Produkts | Auf Anfrage |
| Produktnummer | BK_BK3030-220 |
Garantie 12 Monate

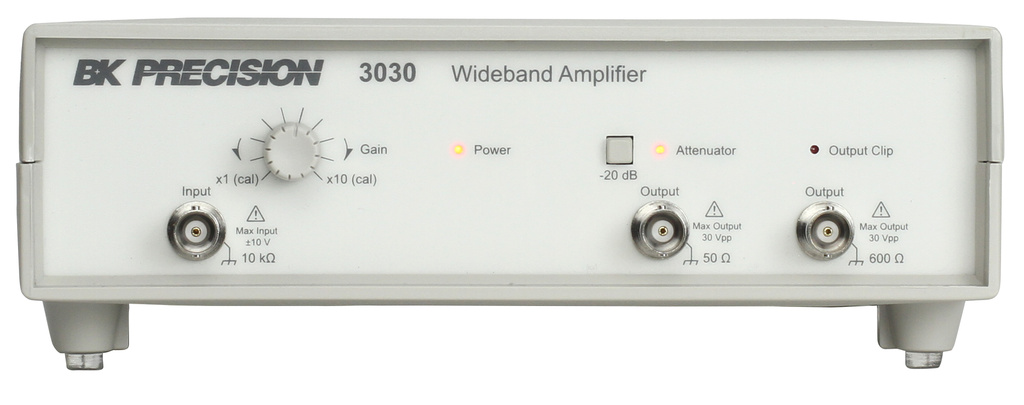

Detailbeschreibung Wideband Amplifier 220 AC input
The 3030-220V is a DC to 1MHz amplifier with a maximum output of 30 volts peak to peak from a 50 Ω source impedance. A 600 Ω output is also provided. The unit can output up to 15 volts peak to peak into a 50 Ω load and can drive up to 300 mA peak into a low impedance or short circuit. The amplifier gain can be adjusted between x1 and x10 using the Vernier adjustment knob. Additional features include a -20 dB attenuator and LED notifying when a signal is beyond the output limit (clipping).
Videos und Dateien zum Herunterladen Wideband Amplifier 220 AC input
Typ: pdfDas Produkt ist in den folgenden Kategorien eingestuft
