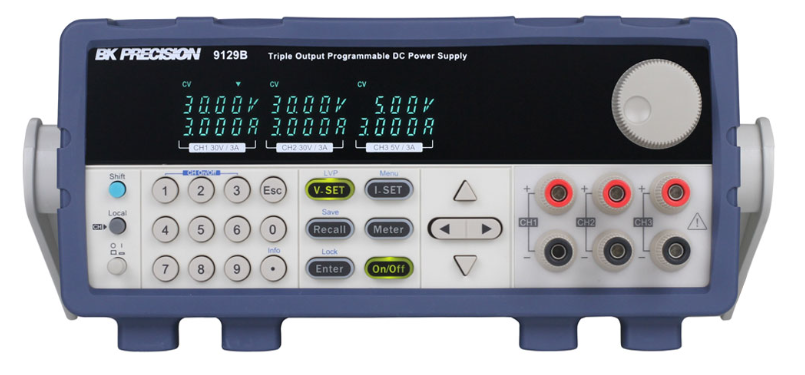

Triple Output Power Supply 2 x 30V/3A x 1 x 5V

Kostenlose Lieferung

Three independent and electrically isolated outputs
Displays voltage and current settings for all three channels simultaneously
Low noise, linear regulation
Series and parallel modes combine channels to increase the output voltage or current
Tracking mode allows users to set up channels to maintain a programmed ratio
Fully programmable channels with output On/Off control
Store and recall up to 27 instrument settings
Communicate via USB interface supporting SCPI commands using the included USB to TTL serial adapter
Softpanel for remote control, test sequence generation, and datalogging available
Overvoltage (OVP) and overtemperature (OTP) protection including keylock function
Compact 19” half-rack form factor allows for side-by-side rack mounting of two units
Suitable for a wide range of applications including education, service and electronic design

(exkl. MwSt.)	€ 805,10
Preis inkl. MwSt.	€ 966,12
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK9129B

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung Triple Output Power Supply 2 x 30V/3A x 1 x 5V

The 9129B is an economical triple output linear programmable DC power supply featuring isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, this supply can operate in tracking mode with user-configurable ratios between channels.

The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values. Up to 27 different instrument settings can be saved and recalled. The power-on state of the outputs can also be configured.

The USB to TTL interface supporting SCPI commands can be used to remotely control the power supply via a PC. Alternatively, users can control the 9129B, execute test sequences or log measurements using the provided PC software application. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android, or Windows 8 compatible tablets or smartphones to remotely monitor select measurement indicators.
