Single-Channel DC Load Module, 80 V / 40 A / 200 W, Front Input

Kostenlose Lieferung

Modules offer wide voltage and current range, 0 to 600 V, 0 to 120 A
Support for up to 4 modules/8 channels or 8 modules/16 channels with mainframe extension
Transient mode up to 25 kHz
Synchronous load on/off function
Adjustable slew rate in CC mode
LabVIEW drivers and operating software included
Standard LAN, GPIB, USB, and RS232 interfaces with USBTMC/SCPI protocol support
Short circuit test simulates a short at the input
Built-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)
Remote voltage sensing to compensate for the effect of voltage drop in wires
Operate identical modules in parallel mode for high current applications
OVP/OCP/OPP/OTP and reverse voltage protection

(exkl. MwSt.)	€ 1 455,00
Preis inkl. MwSt.	€ 1 746,00
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_MDL4U200B

Zusammenhängende Produkte

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung Single-Channel DC Load Module, 80 V / 40 A / 200 W, Front Input

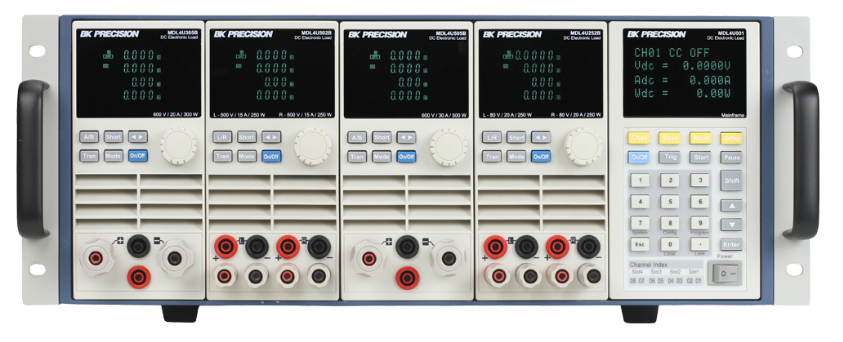

The MDL4UB Series is a multi-channel modular programmable electronic load system in a compact 4U form factor. Nine different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output DC power supplies to batteries, fuel cells, and photovoltaic arrays.

The mainframe has four slots that can be populated with any combination of the modules up to 2400 W (up to 4800 W with mainframe extension). The high-performance electronic load modules of the MDL4UB Series are capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode.
