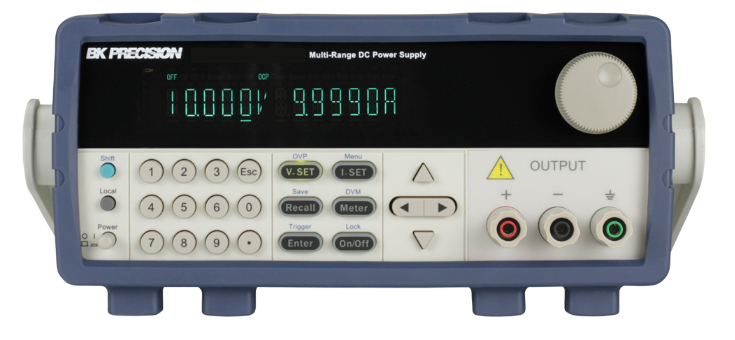

Multi-Range 150V/10A/600W DC Power Supply

Kostenlose Lieferung

Multi-ranging operation
High programming and readback resolution of 1 mV/0.1 mA
Output timer function
List mode programming
Store and recall up to 72 instrument settings
Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control
Remote sense
Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
NI-certified LabVIEW driver and softpanel for remote control, test sequence generation, and datalogging available
Compact 19" half-rack form factor allows for side-by-side rack mounting of two units

(exkl. MwSt.)	€ 1 930,30
Preis inkl. MwSt.	€ 2 316,36
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK9206B

Zusammenhängende Produkte

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung Multi-Range 150V/10A/600W DC Power Supply

Any 9200B series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications, these power supplies provide a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands.
