High Voltage and Current Multiplexer

Kostenlose Lieferung

DAQ3120 Benchtop Data Acquisition System

3-slot base unit with built-in 6-1/2 digit DMM
Basic 0.0035% DCV accuracy
5 available input modules for customization
Measures up to 600 VDC / 400 VAC
Up to 450 channels/s scan rate
Up to 120 channels per system
100 kpts reading non-volatile internal memory including time stamp
Large 4.3" TFT color display
Digital I/O interface offers external triggering and alarm outputs
Log or copy data directly to a USB drive
Includes LAN, USB (USBTMC and USBVCP), and micro GPIB (-GPIB model only) interfaces

Detaillierte Informationen

Weitere Produkte in der Kategorie

(exkl. MwSt.)	€ 630,50
Preis inkl. MwSt.	€ 756,60
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_DM309

Zusammenhängende Produkte

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung High Voltage and Current Multiplexer

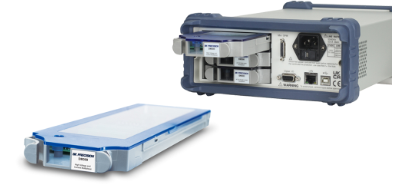

The DAQ3120 Benchtop Data Acquisition System integrates a 6-1/2 digit digital multimeter (DMM) and a data logger in a compact and modular design, providing a comprehensive platform for acquiring, analyzing, and logging diverse physical measurements. The system deliveries high accuracy with a basic DCV accuracy of 0.0035% and measurement capabilities for temperature (via thermocouples, RTDs, and thermistors), DC/AC voltage and current, resistance, frequency, period, capacitance, and strain. Store up to 100 kpts of data in the internal non-volatile memory, complete with time-stamped readings. The base unit provides three module slots to configure from an offering of five distinct modules.

The DAQ3120 offers extensive connectivity options, including LAN, USB (USBTMC and USBVCP), and optional micro GPIB, enabling seamless PC integration. The accompanying DAQ-Data logger PC software provides an intuitive solution for test setup and control, optimizing data acquisition processes.
