Einführung LCR Meter BK Precision LCR Meter BK Precision BK891 300 kHz Bench LCR meter

BK Precision BK891 300 kHz Bench LCR meter

Kostenlose Lieferung

BK Precision BK891 300 kHz Bench LCR meter


  • Measurement parameters: L, C, R, Z, G, B, Y, D, Q, Θ ,θ, DCR
  • 0.05% best impedance accuracy
  •
  • Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution
  •
  • 0.5 Vrms and 1 Vrms selectable test levels
  • Adjustable measurement speed for fast readout or better accuracy
  •
  • 300-point linear and logarithmic sweep function
  •
  • Bin sorting function (9 primary, one secondary, and one out-of-spec bin)
  •
  • Save/recall up to 100 setups (10 internal) including 1000 measurements and screenshots
  • Standard USB (Virtual COM), GPIB, and LAN interface for remote control
  • Detaillierte Informationen

(exkl. MwSt.) € 1 755,70
Preis inkl. MwSt. € 2 106,84
 Stk.
Verfügbarkeit des Produkts Auf Anfrage
Produktnummer BK_BK891

Garantie 36 Monate

Detailbeschreibung BK Precision BK891 300 kHz Bench LCR meter

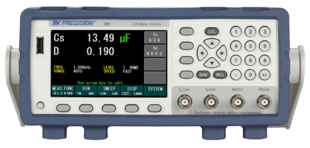

The 891 Bench LCR meter is capable of measuring inductors, capacitors, and resistors at DC or from 20 Hz to 300 kHz. The instrument's compact 2U half-rack form factor is suitable for the bench or rack mount installation. A large 4.3" color display with all important parameters and measurements visible on one screen makes this meter easy to operate.

The instrument's convenient bin sorting function and frequency sweep function enables quick sorting and characterization of components. Standard USB, GPIB, and LAN interfaces enhance your productivity by providing remote control capabilities to perform daily operations in production, quality control, and laboratory environments.

Nach oben

Zeigen videos und dateien zum herunterladen  »

Videos und Dateien zum Herunterladen BK Precision BK891 300 kHz Bench LCR meter

Typ souboru: pdf Typ: pdf
