Einführung Funktionsgeneratoren BK Precision Funktions- und Arbitärgeneratoren BK Precision BK4014B 12 MHz DDS Sweep Function Generator

BK Precision BK4014B 12 MHz DDS Sweep Function Generator

Kostenlose Lieferung

BK Precision BK4014B 12 MHz DDS Sweep Function Generator


  • Sine, square, and triangle/ramp waveform generation
  • Bright color LCD display with waveform preview
  •
  • Linear and logarithmic sweep
  •
  • AM/FM modulation
  • Adjustable duty cycle
  •
  • Independent DC offset amplifier design allows large offsets on small amplitude (e.g. 10 mV) waveforms
  •
  • Store and recall instrument settings
  •
  • Output On/Off button
  • Internal/external triggering
  • Gate and burst mode (4040B only)
  • Built-in counter
  • USB interface with SCPI-compliant command set
  • Short circuit and overvoltage protection on all inputs and outputs
  • Detaillierte Informationen

(exkl. MwSt.) € 533,50
Preis inkl. MwSt. € 640,20
 Stk.
Verfügbarkeit des Produkts Auf Anfrage
Produktnummer BK_BK4014B

Garantie 36 Monate

Detailbeschreibung BK Precision BK4014B 12 MHz DDS Sweep Function Generator

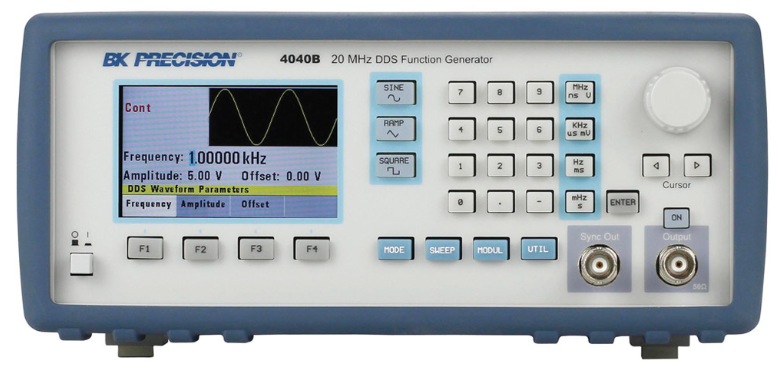

Models 4014B and 4040B are versatile sweep function generators, designed with a dual technology architecture combining direct digital synthesis (DDS) and a low-jitter square wave generator. These instruments generate sine, square, and triangle waveforms with high signal precision and stability. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit), linear and logarithmic sweep, AM/FM modulation, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.
