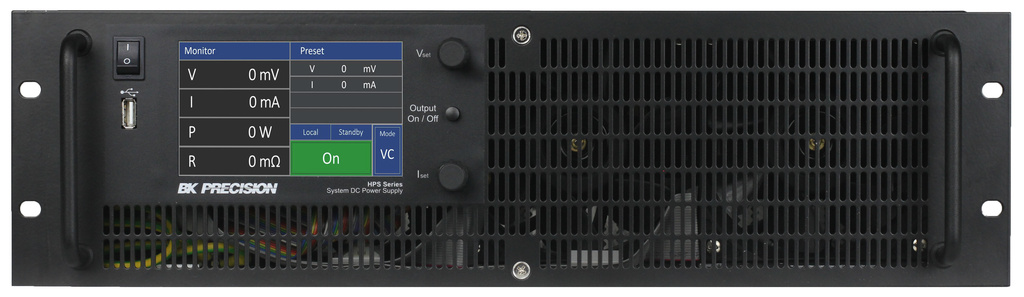

800 V / 25 A / 20 kW DC Power Supply - 400 VAC Input

Kostenlose Lieferung

High power density, up to 20 kW in a 3U form factor
Efficiency up to 94%
Parallel operation for increased output power up to 160 kW
Galvanically isolated analog control and monitoring interface
OVP, OCP, OPP, UVP (under voltage protection), and key lock function
Adjustable voltage and current rise time
Fast transient response time < 3 ms
Simulation of photovoltaic arrays
Remote sense to compensate for voltage drop
Datalogging directly to a USB flash drive
RS232 and LAN interfaces standard
LabVIEW drivers included
3-phase 208 VAC or 400 VAC input configurations available

(exkl. MwSt.)	€ 14 841,00
Preis inkl. MwSt.	€ 17 809,20
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_HPS20K800-400V

Zusammenhängende Produkte

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 800 V / 25 A / 20 kW DC Power Supply - 400 VAC Input

The HPS Series Programmable DC Power Supplies provide 20 kW of clean output power and high efficiency in a compact 3U form factor. The 5-inch touchscreen display offers intuitive control while displaying both set and measured values. Built-in protection features help prevent damage to the power supply and device under test, while adjustable voltage/current slew rates deliver an additional layer of control.

Suitable for applications in aerospace, electric vehicle (EV), solar, and green technology industries.
