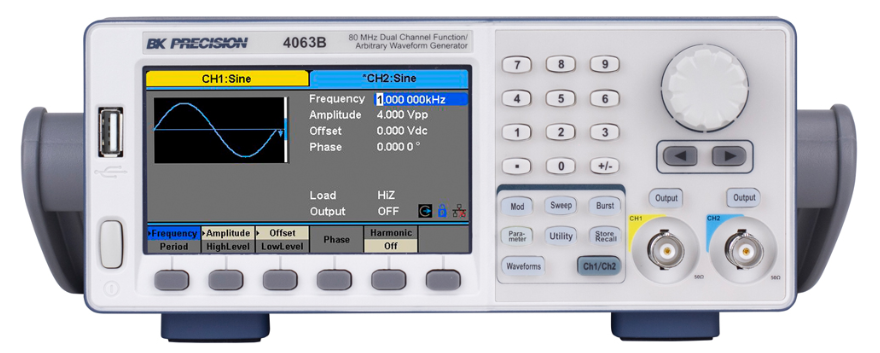

80 MHz Dual Channel Function/Arbitrary Waveform Generator

Kostenlose Lieferung

300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
16-bit resolution, 8 Mpt arbitrary waveform length
Two independent channels with one button phase synchronization
Channel copy, track, and waveform combine functions
4.3-inch touch screen display
Linear and logarithmic sweep
AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
Variable DC offset
Overvoltage protection
Internal/external triggering
Gate and burst mode
196 built-in predefined arbitrary waveforms
Frequency counter
LAN and USB device (USBTMC-compliant) with front panel USB host port
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)

Detaillierte Informationen

Weitere Produkte in der Kategorie

(exkl. MwSt.)	€ 1 328,90
Preis inkl. MwSt.	€ 1 594,68
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK4063B

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 80 MHz Dual Channel Function/Arbitrary Waveform Generator

The 4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.
