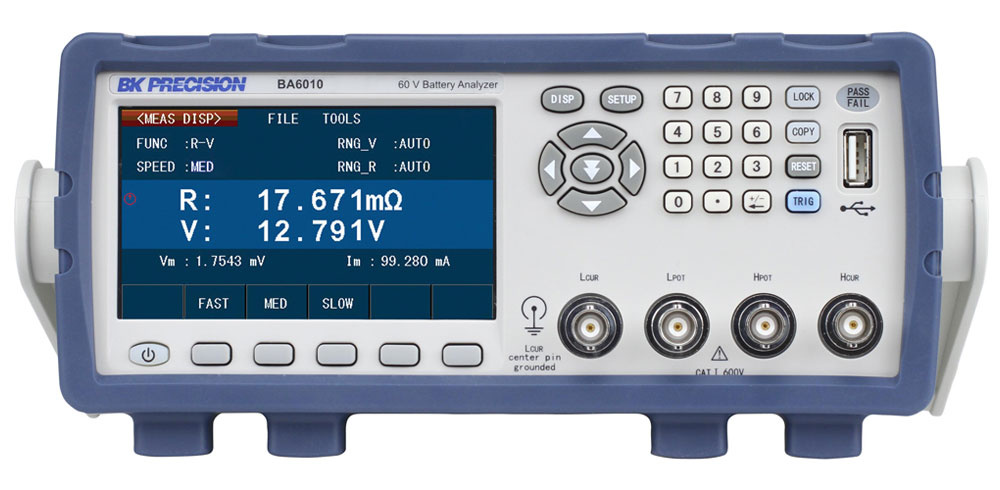

60 V Battery Analyzer

Kostenlose Lieferung

4.3 inch color LCD display
Trace function for graphical display of voltage and resistance with on-screen cursor measurements
4-wire kelvin test leads with fault monitoring of drive and sense lines
Compare and sort using 9 bins with statistical evaluations
Δ% mode for quickly determining the percent difference between batteries
Pass/Fail indicator with audible tone
Fast test speed up to 50 measurements per second to increase manufacturing throughput
Trigger modes internal, manual, bus and external
100 internal and external storage locations for setup and screen save
Handler interface for easy integration with a component handler or integration with PLC
Standard RS232, USB (USBTMC and virtual COM) interfaces

(exkl. MwSt.)	€ 1 435,60
Preis inkl. MwSt.	€ 1 722,72
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BA6010

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 60 V Battery Analyzer

The BA6010 Series battery analyzers measure voltage and resistance of modern battery technologies with high accuracy, resolution, and speed. Additionally, these instruments provide auxiliary measurement parameters inductance, dissipation factor, impedance, quality factor, reactance, phase angle in degrees, and capacitance in farads.

The BA6010 Series is suitable for characterizing battery chemistries that are responsive to a 1 kHz AC stimulus signal, including lead acid, lithium and alkaline type batteries used in consumer products, electric vehicles, power backup, security, and fire alarm systems. Model BA6011 supports voltage measurements of battery packs up to 300 V whereas the BA6010 features a 60 V measurement range ideal for battery cell testing. The handler and remote interfaces expands the analyzer’s application to R&D and automated manufacturing environments.
