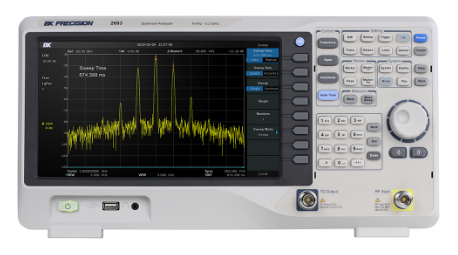

3,2 GHz Spectrum Analyzer

Kostenlose Lieferung

Frequency range: 9 kHz to 3.2 GHz
High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
Low phase noise of -98 dBc/Hz @ 10 kHz offset
Low level uncertainty of ±0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Preamplifier and tracking generator standard on all models
10.1” wide-screen 1024 x 600 color display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures

(exkl. MwSt.)	€ 4 365,00
Preis inkl. MwSt.	€ 5 238,00
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK2683

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung 3,2 GHz Spectrum Analyzer

The 2680 series of spectrum analyzers delivers performance and functionality in frequency ranges from 9 kHz to 2.1 GHz, or 3.2 GHz. Each model offers a standard pre-amplifier, tracking generator, and 1 Hz minimum RBW. The included advanced measurements give the user access to even more powerful features. In addition, these analyzers provide low phase noise and displayed average noise level (DANL) to view critical detail in the spectrum which is beautifully displayed on the 10.1” widescreen color display. The reflection measurement option enables VSWR, reflection coefficient, and return loss measurements, while the EMI pre-compliance option enables pre-defined bandwidth set points and quasi-peak detection. These analyzers are ideal for applications in 2-way radio, site surveying, EMI pre-compliance, characterizing the frequency response of RF devices and more.
