1200W Multi-Range 80V/60A DC PWR SPPLY W/automotive test

Kostenlose Lieferung

Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
Compact, high density, 1U rackmount form factor (2U for 9117)
High programming and readback resolution
Adjustable voltage rise and fall times
Sequence programming (internal list mode for 9115/B, 9115/B-AT, and 9116/B)
Store and recall up to 100 instrument settings
Standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces supporting SCPI commands for remote control
GPIB optional for select models
Analog interface with control and monitoring functions
Remote sense
Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
Softpanel for remote control, test sequence generation, and data logging

(exkl. MwSt.)	€ 3 031,25
Preis inkl. MwSt.	€ 3 637,50
Stk.
Verfügbarkeit des Produkts	Auf Anfrage
Produktnummer	BK_BK9115-AT

Zusammenhängende Produkte

Garantie 12 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

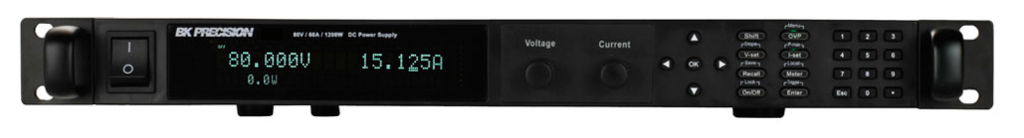

Detailbeschreibung 1200W Multi-Range 80V/60A DC PWR SPPLY W/automotive test

Any 9115/B Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog-style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces supporting SCPI commands. GPIB is available as an option for select models.

The 9115/B-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2:2012(E) standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.
